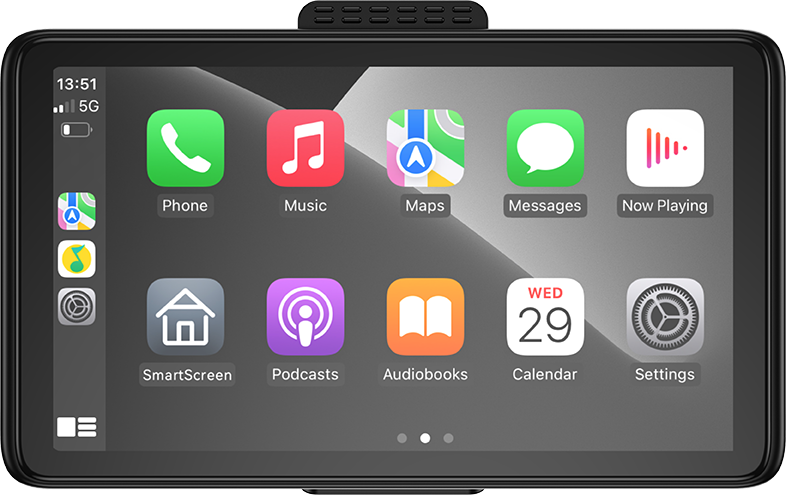

Portable Car Stereo AotuLink C7
7 Inch Wireless Apple Carplay & Android Auto, AotuLink Portable Car Stereo, HD Touch Screen with Mirror Link, Multimedia Player, Bluetooth, AUX/FM, Dash or Windshield Mount Support Most Car Models
![](static/images/showcase.png)

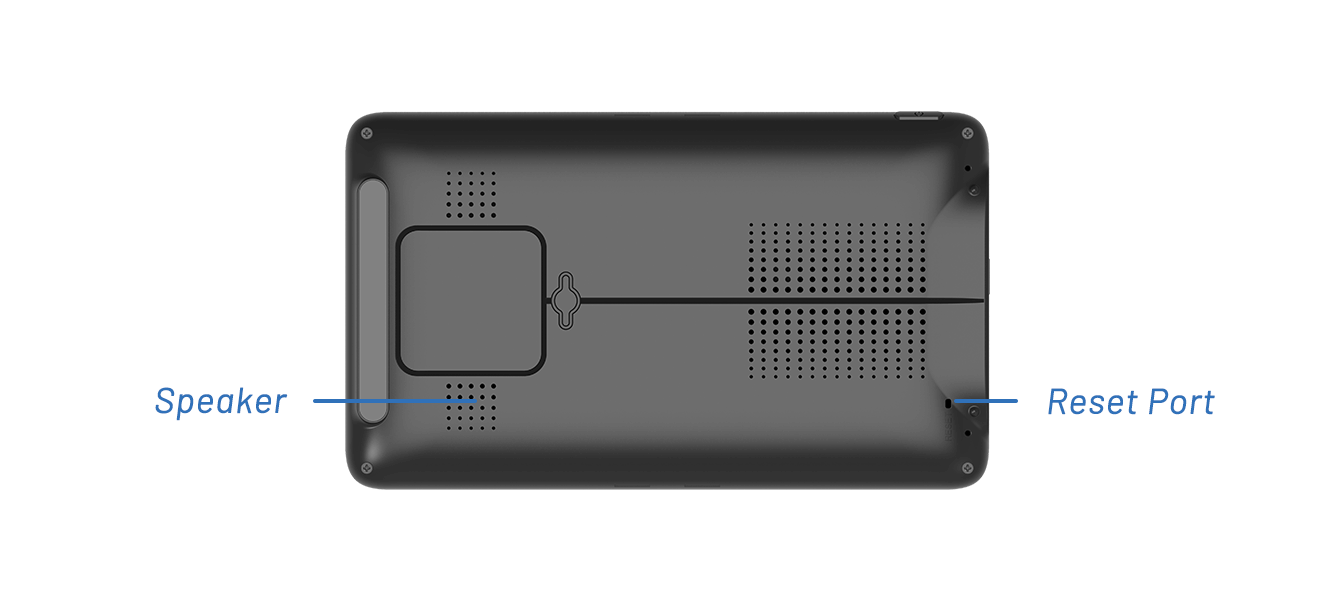

Device Overview

![](static/images/overview-01.gif)
![](static/images/overview-02.gif)
![](static/images/overview-03.gif)
Product Composition List

- HD Display
- Touch Screen
- Bluetooth / FM / WiFi
- USB-C Interface Power Supply
- USB-C Power Cord
- 5V 3A Current
- Cigar Lighter Power Supply
- Wired Android Auto Port
- 3.5mm Audio Cable
- Connect The Car Aux Interface
- Transmit The Device Sound To The Original Car Audio
- Fixed To The Back Of The Device

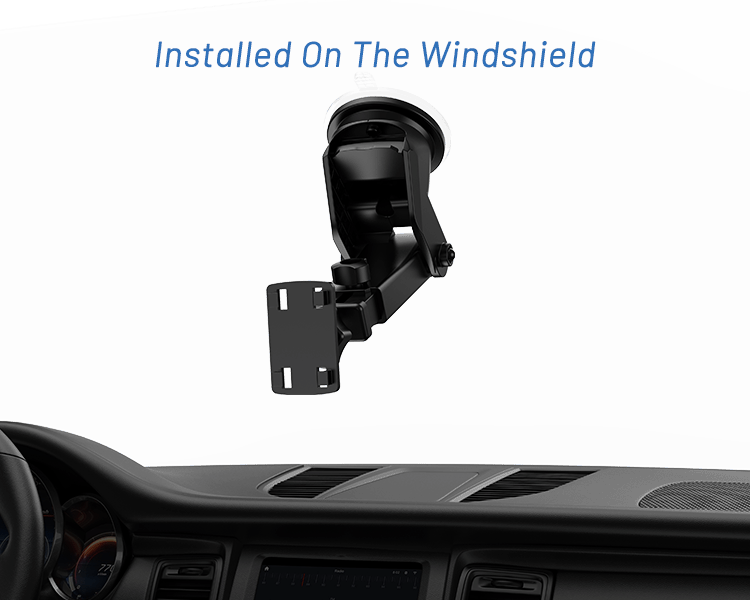

- Installed On The Windshield

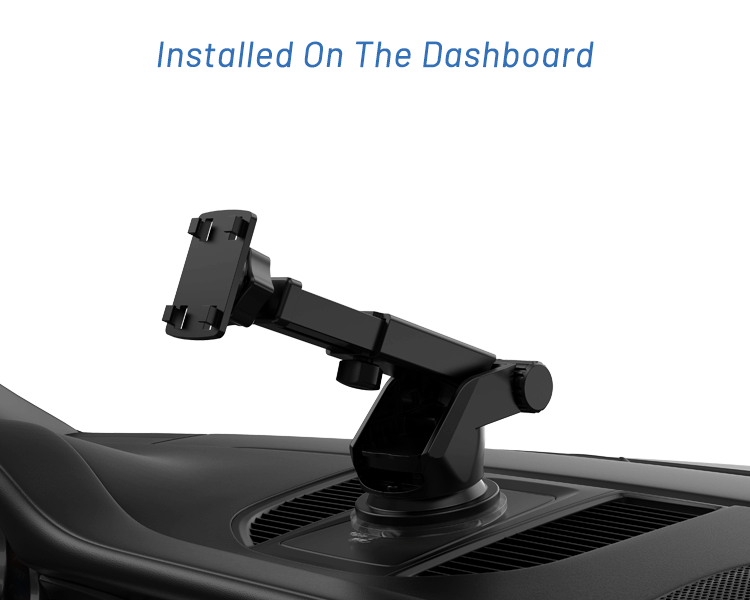

- Installed On The Dashboard
- With The Suction Cup Bracket
- Better Suctioned To The Non-Smooth Dashboard

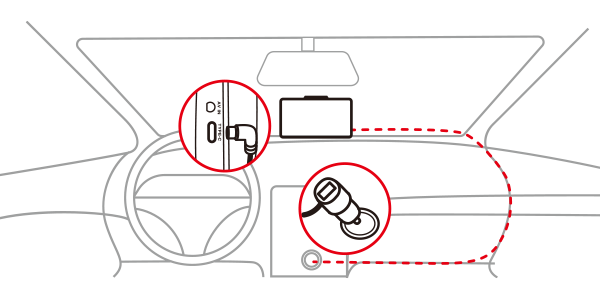

Wiring Lnstructions

![](static/images/wiring.png)
Insert the car charger into the car's cigarette lighter, and connect the other end to the USB-C Port of the device.
Note: Please be sure to use the original car charger. Other car chargers may cause damage to the device due to voltage and heat, the FM transmitter function does not work properly, or wired Android auto cannot connect, etc.Position Of Suction Cup Bracket

![](static/images/bracketposition-01.gif)
![](static/images/bracketposition-02.gif)
![](static/images/bracketposition-03.gif)

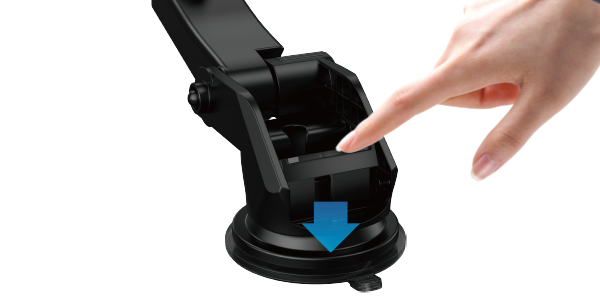

Method Of Suction Cup Bracket

![](static/images/bracketmethod.png)
1. Clean the installation surface to ensure that there is no dust or dirt on the surface (Rinse the suction cup under running water and air dry to restore it to good condition).
2. Place the bracket in the appropriate position and press the "lock" lever.
Note: If the surface of your car dashboard is not smooth and has texture, please use dashboard pad mounting disk.

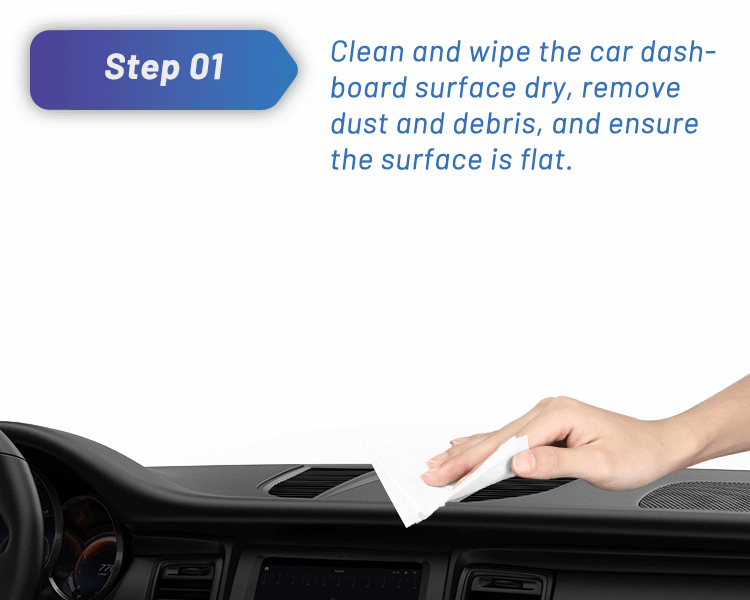

Method Of Dashboard Pad Mounting Disk

![](static/images/diskmethod-01.gif)
![](static/images/diskmethod-02.gif)
![](static/images/diskmethod-03.gif)
![](static/images/diskmethod-04.gif)
![](static/images/diskmethod-05.gif)

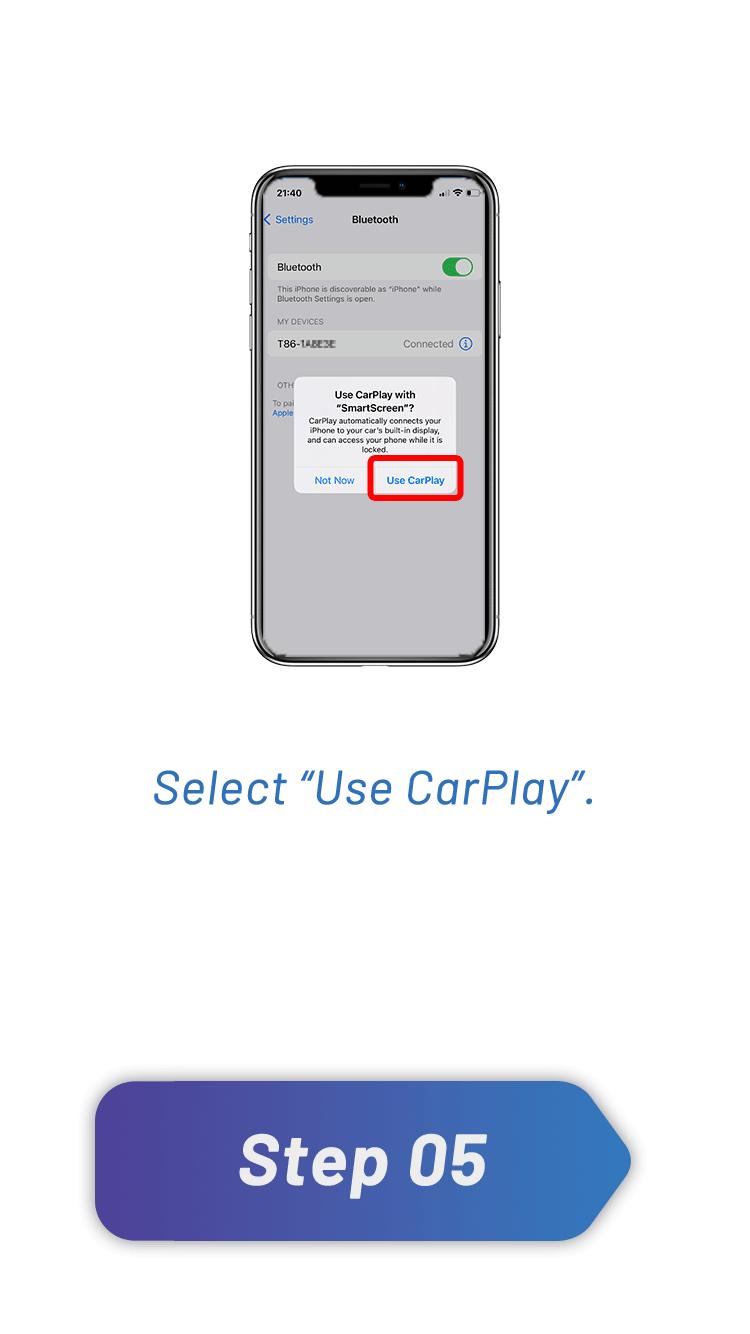

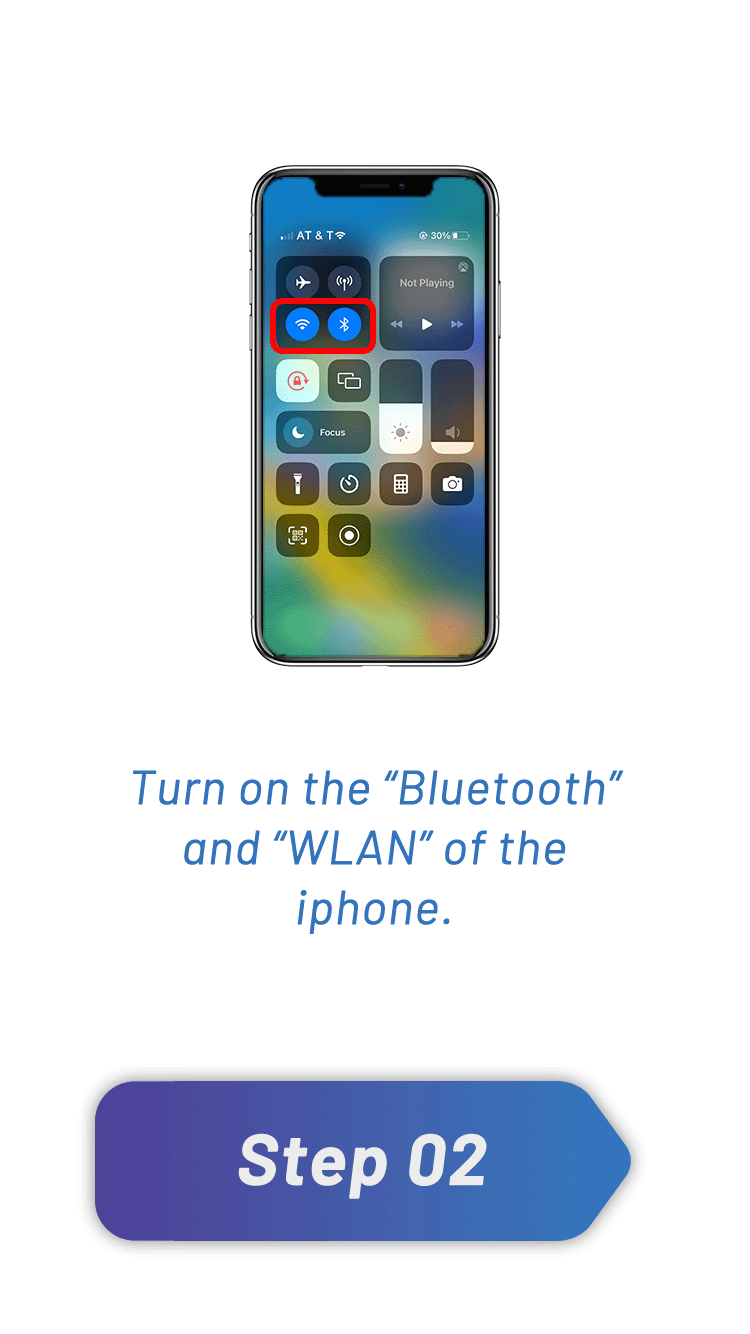

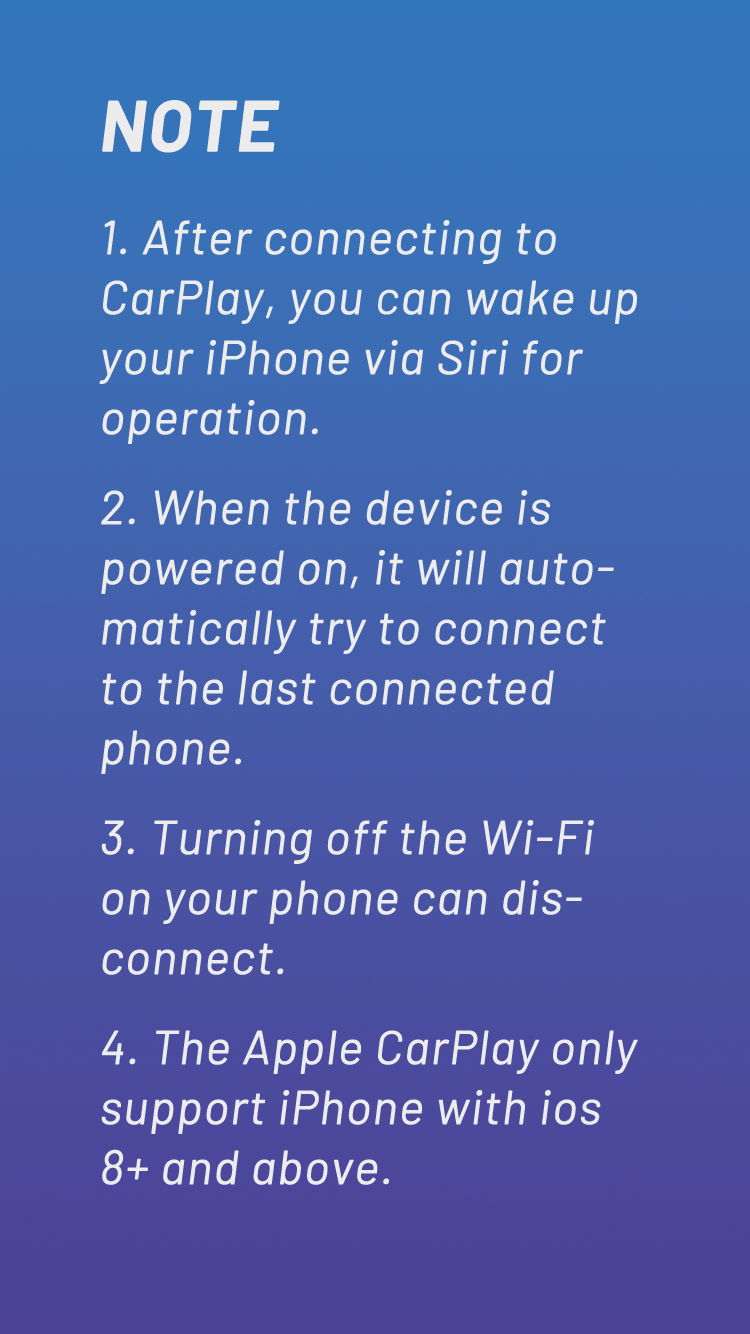

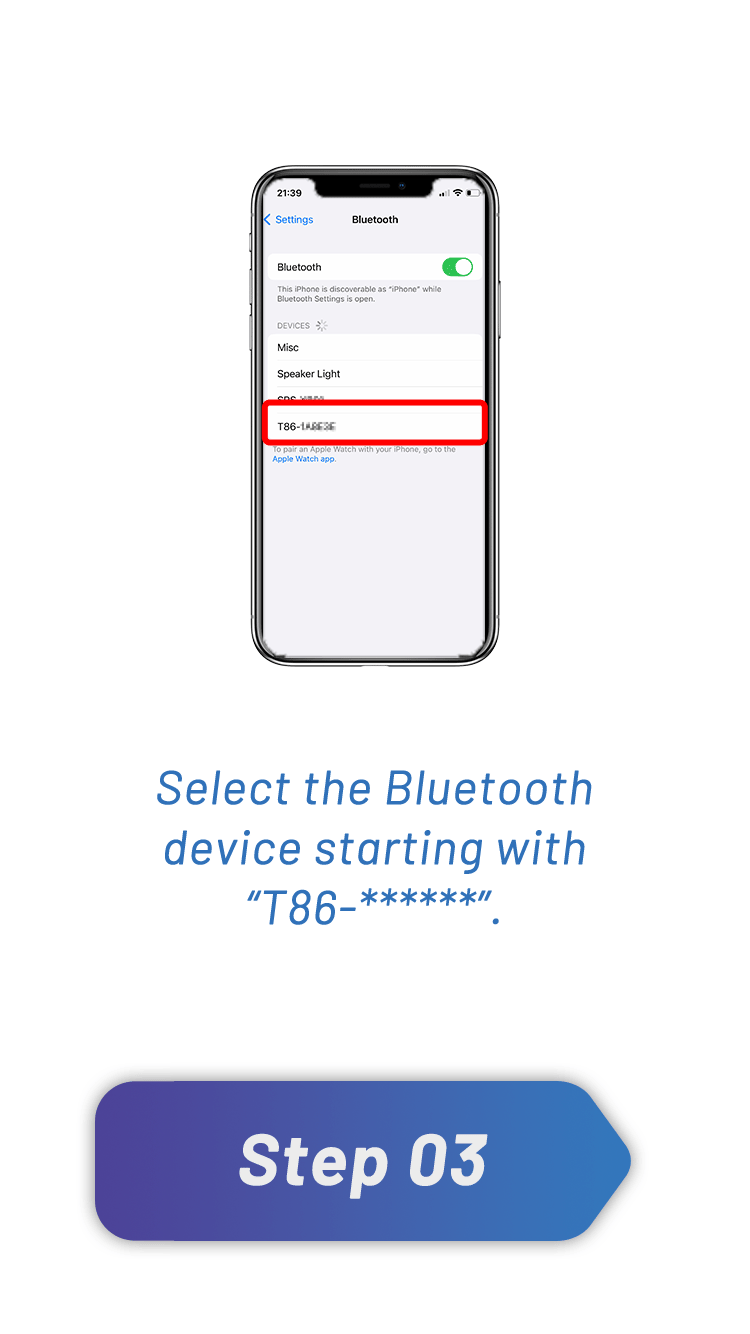

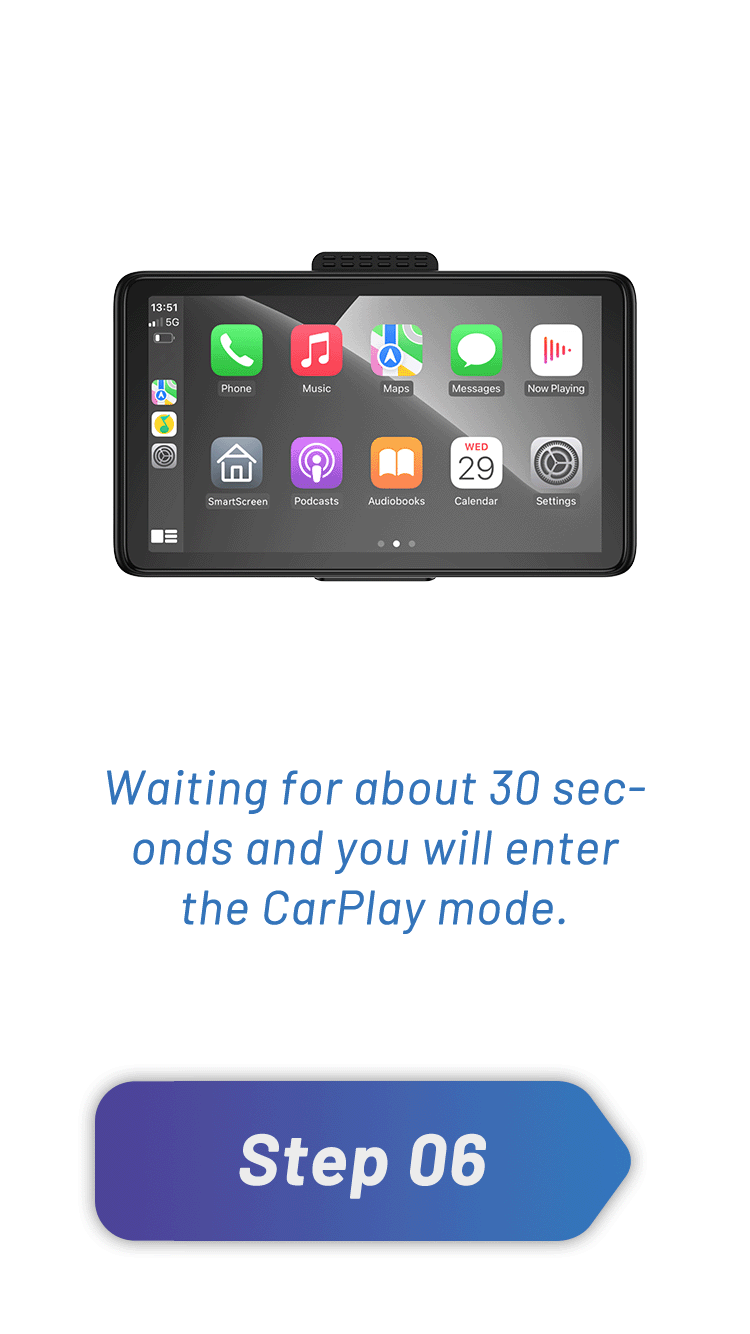

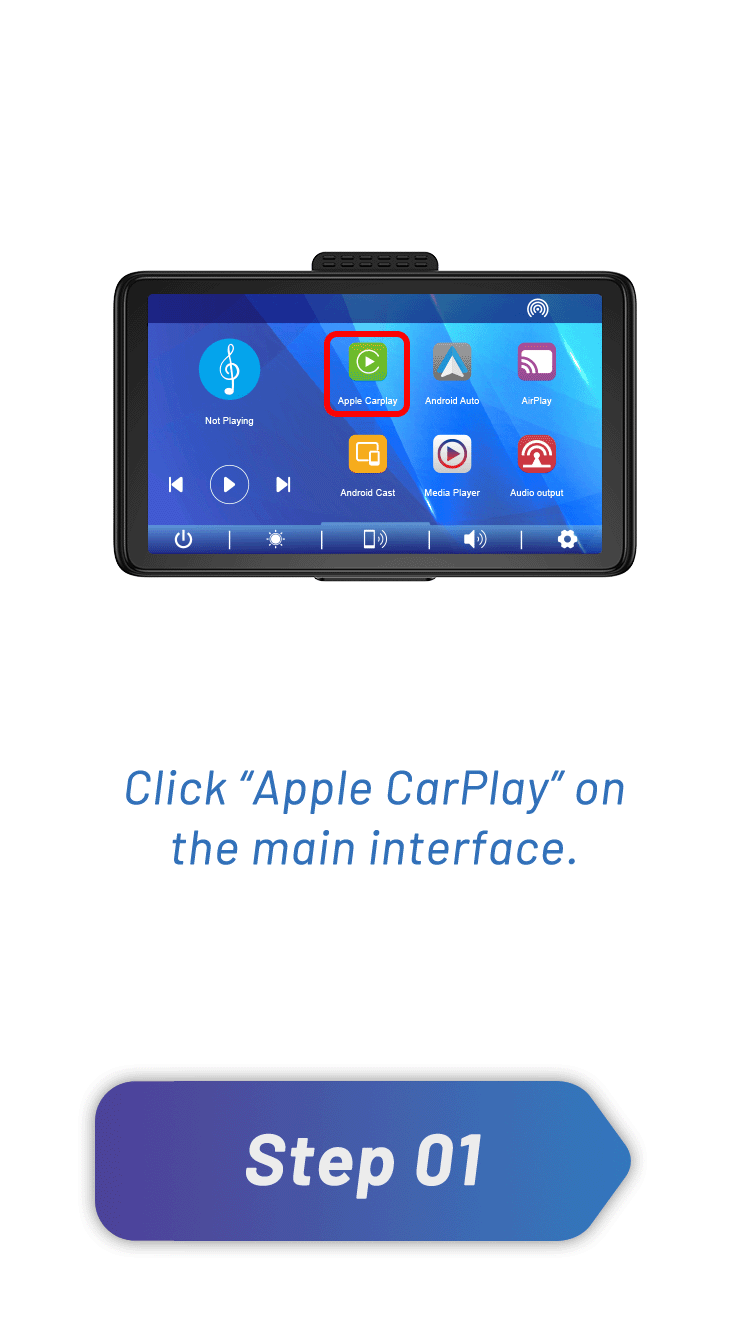

Wireless CarPlay Connection
![](static/images/carplay-00.gif)
![](static/images/carplay-01.gif)
![](static/images/carplay-02.gif)
![](static/images/carplay-03.gif)
![](static/images/carplay-04.gif)
![](static/images/carplay-05.gif)
![](static/images/carplay-06.gif)
![](static/images/carplay-07.gif)

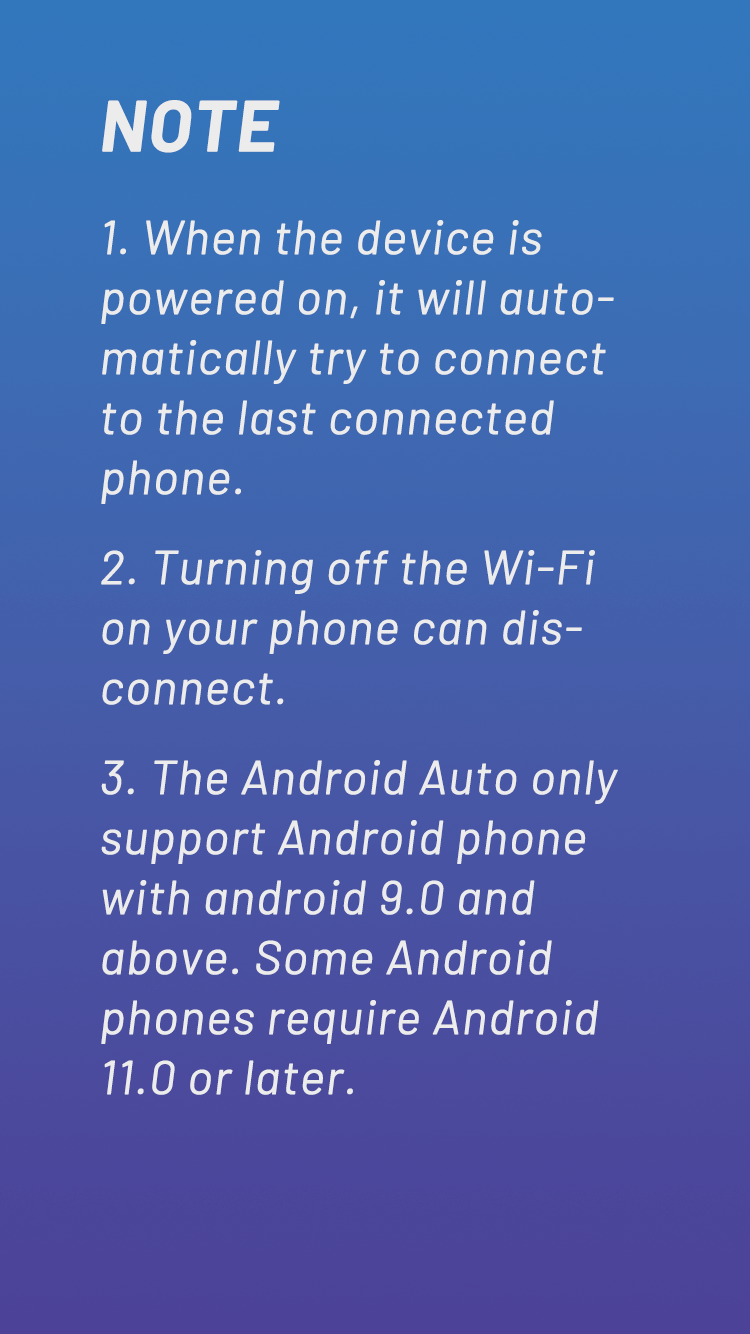

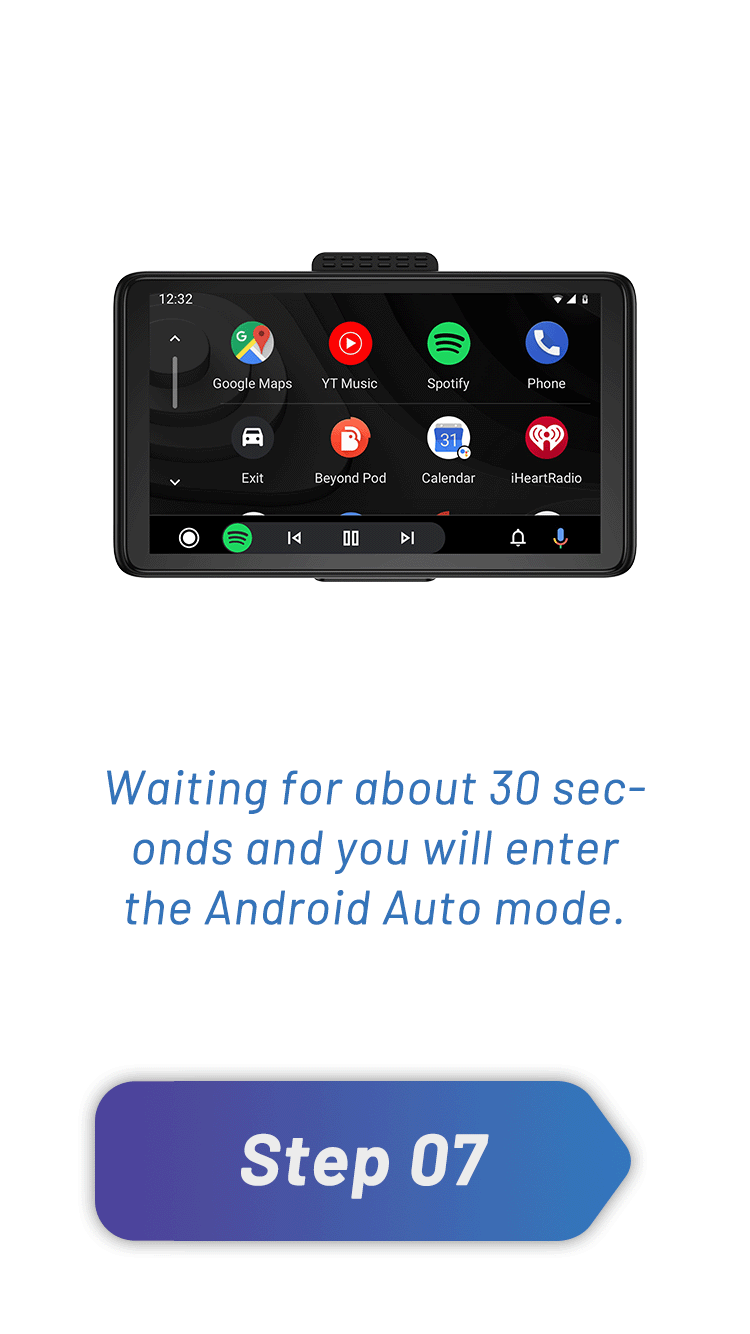

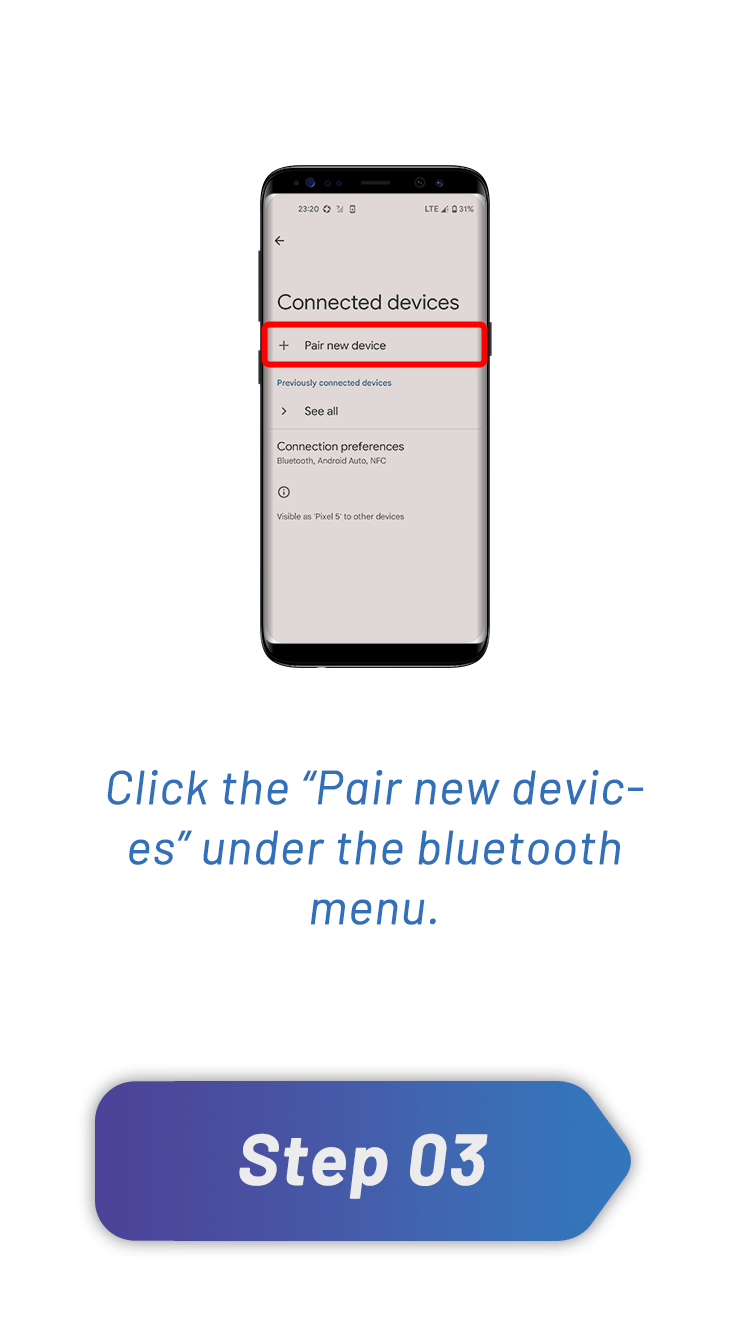

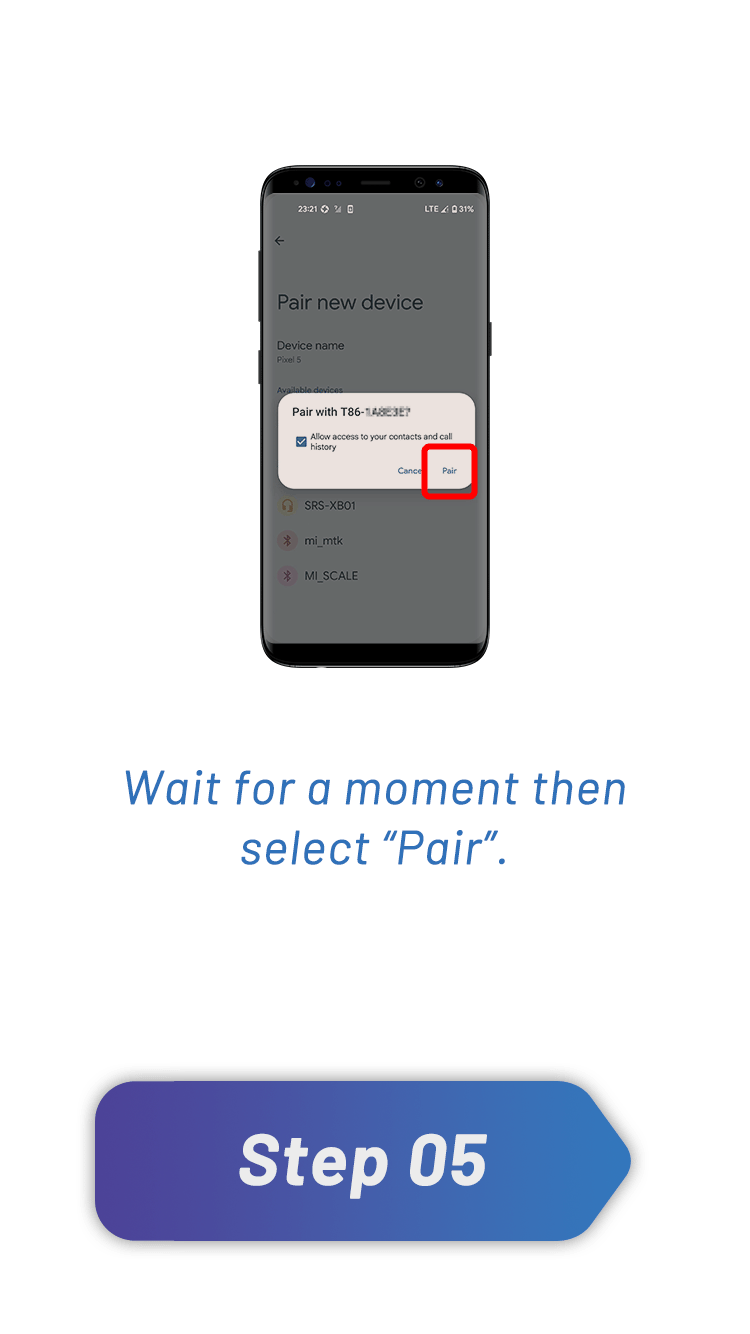

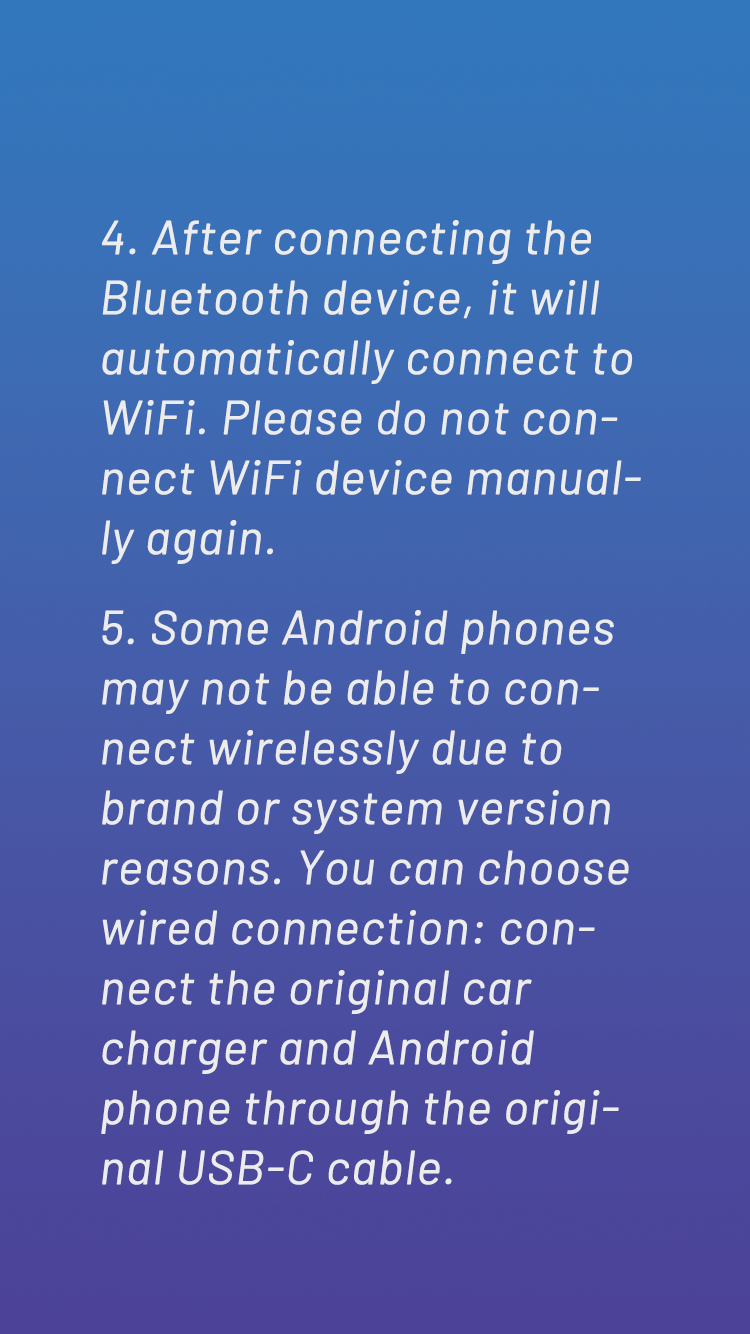

Wireless Android Auto Connection
![](static/images/androidauto-00.gif)
![](static/images/androidauto-01.gif)
![](static/images/androidauto-02.gif)
![](static/images/androidauto-03.gif)
![](static/images/androidauto-04.gif)
![](static/images/androidauto-05.gif)
![](static/images/androidauto-06.gif)
![](static/images/androidauto-07.gif)
![](static/images/androidauto-08.gif)
![](static/images/androidauto-09.gif)

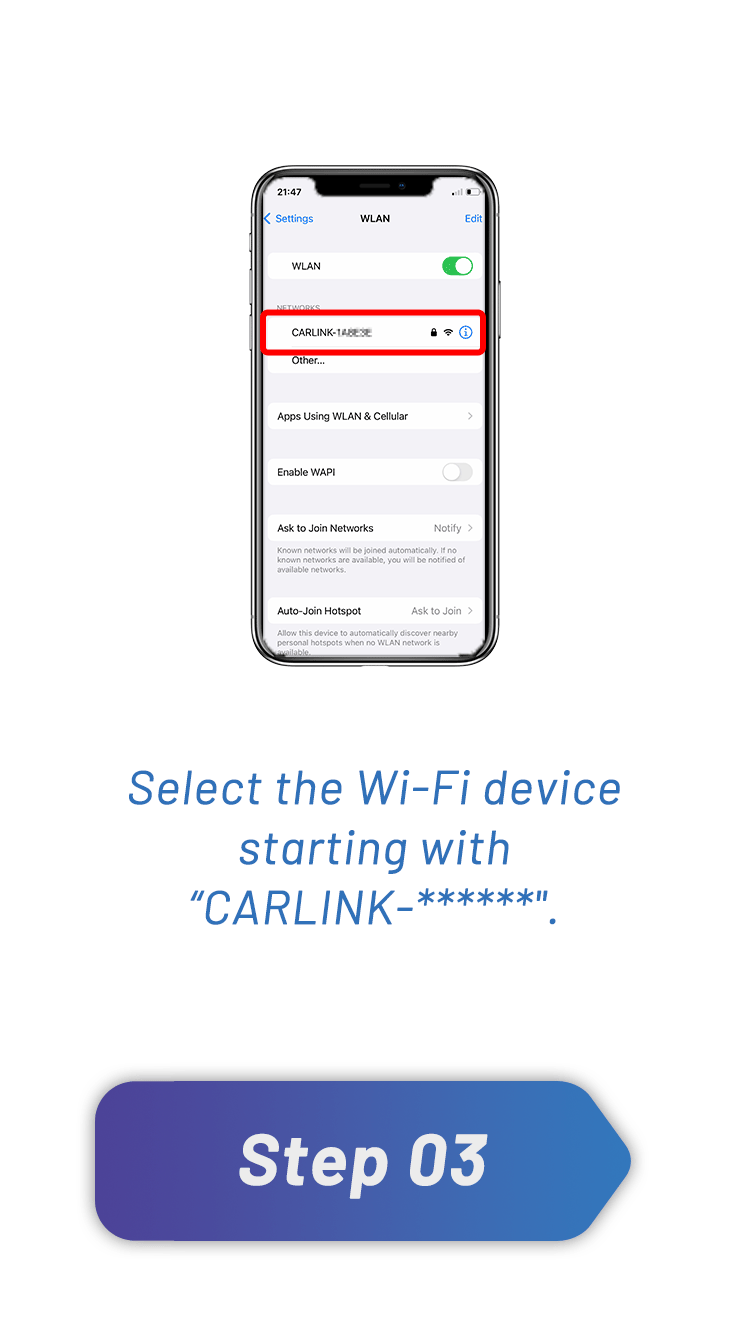

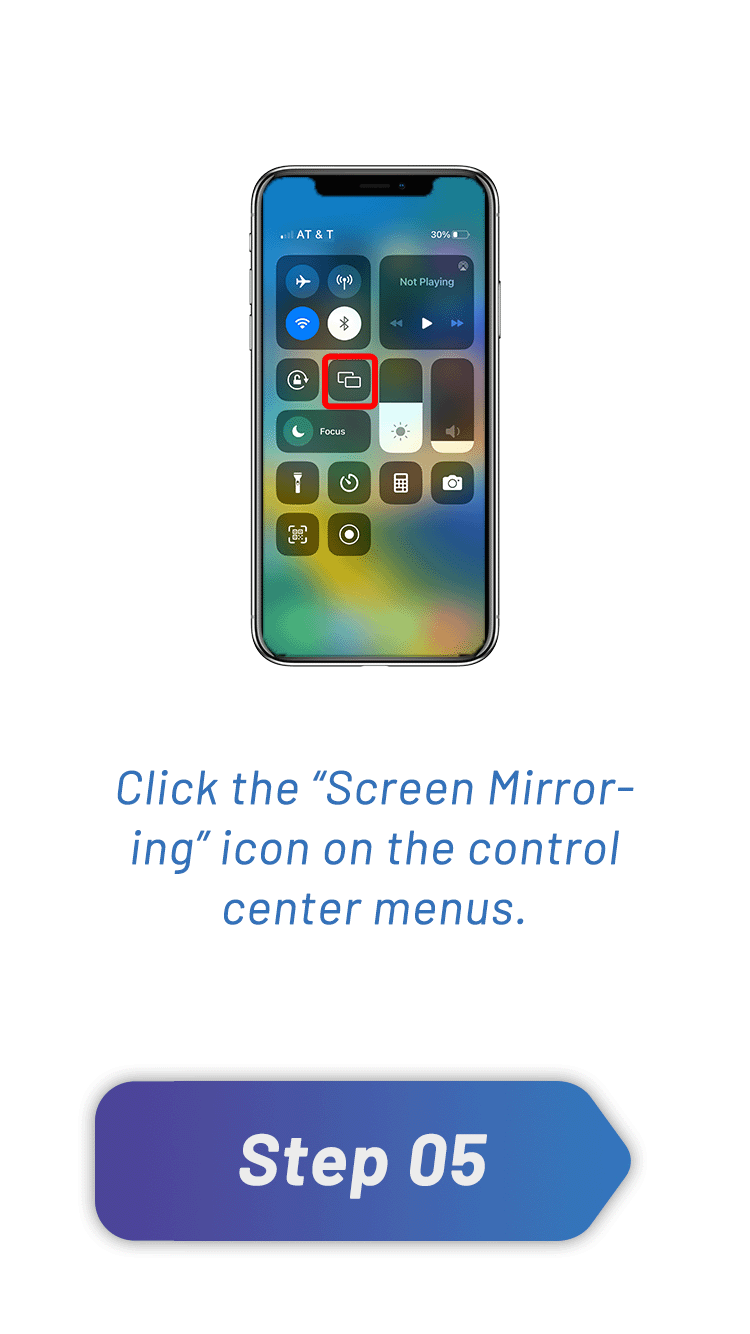

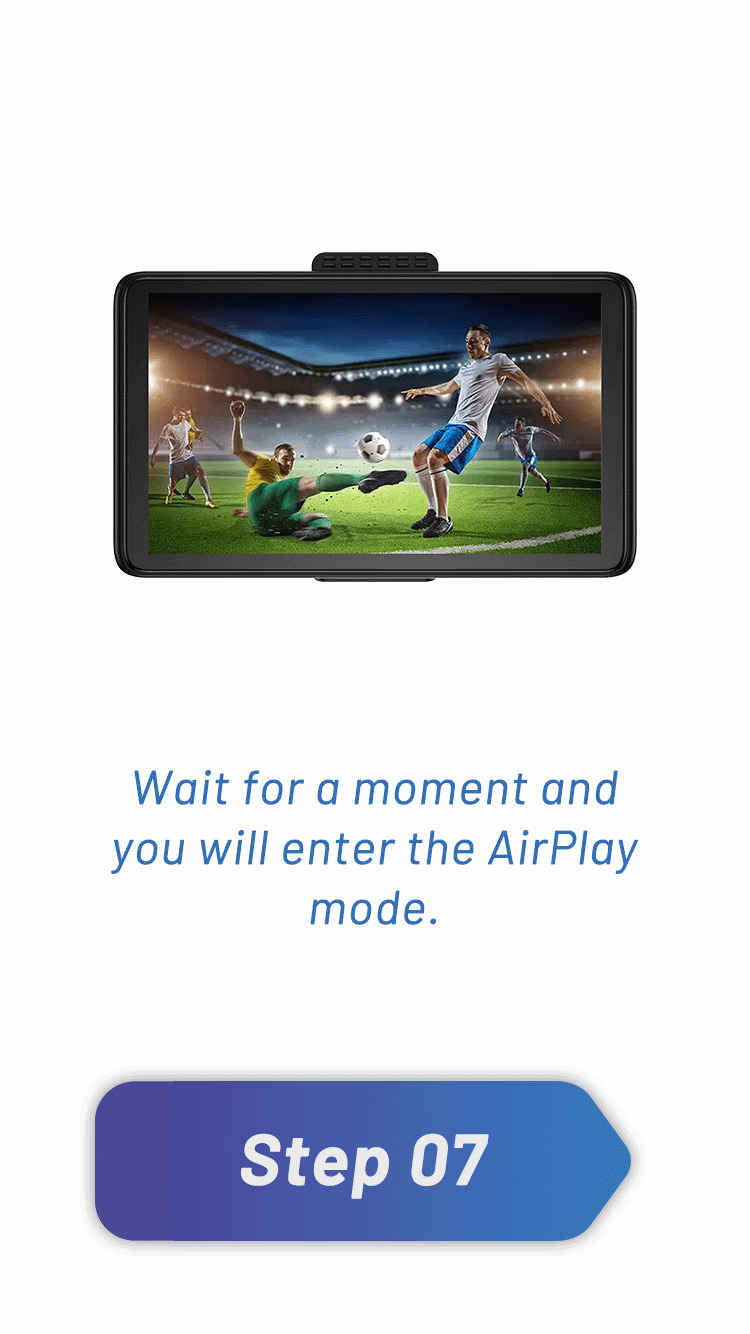

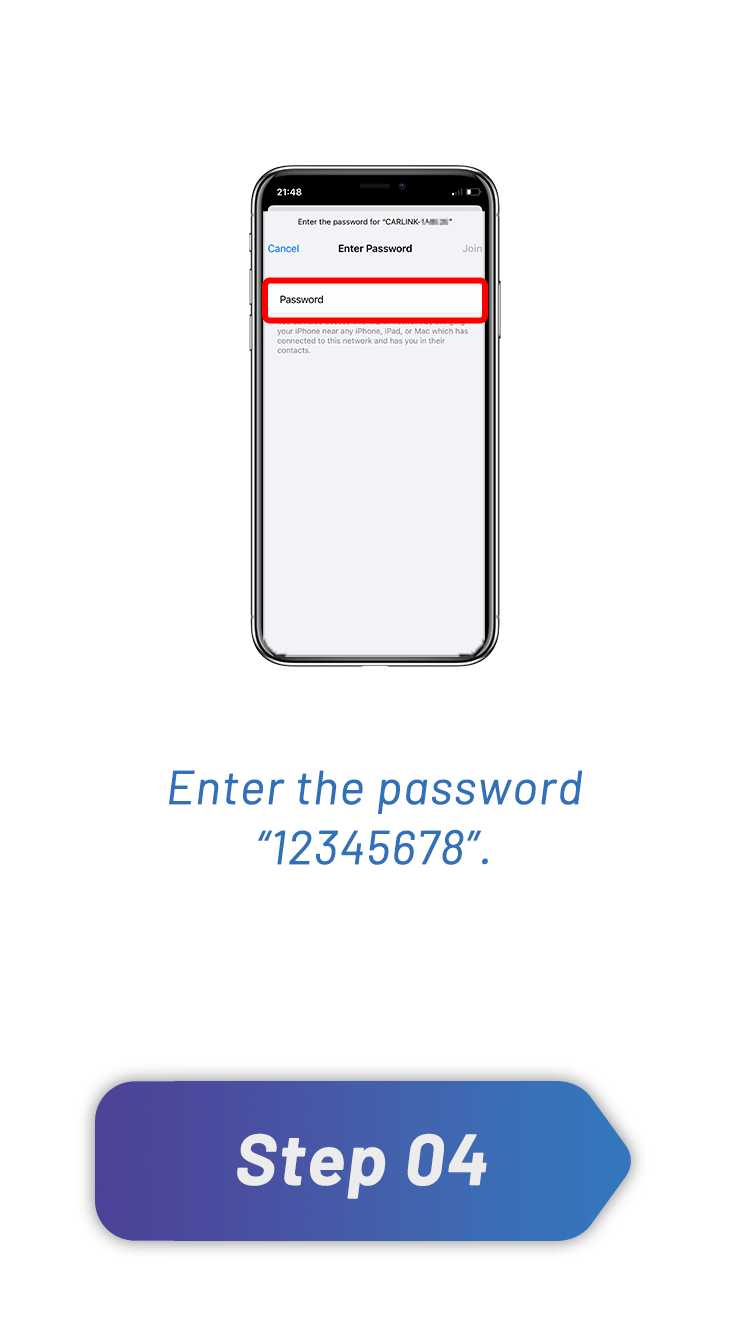

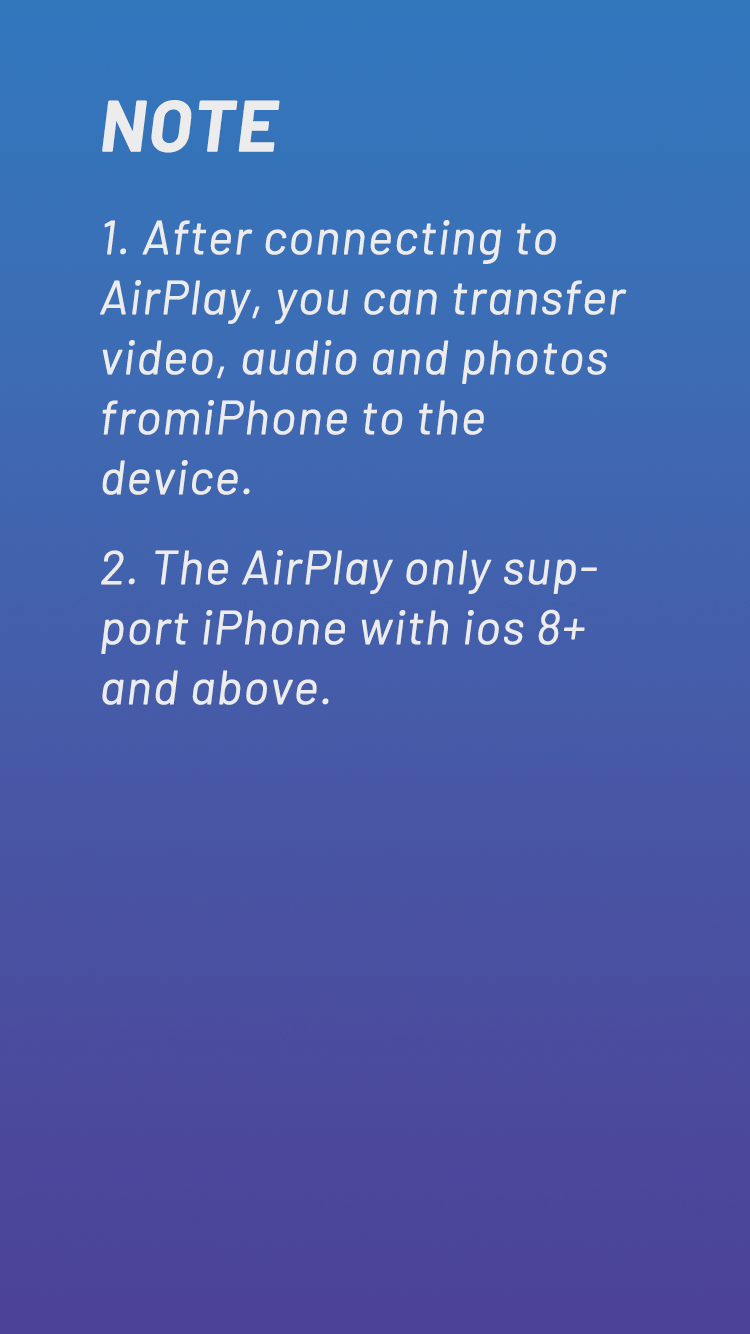

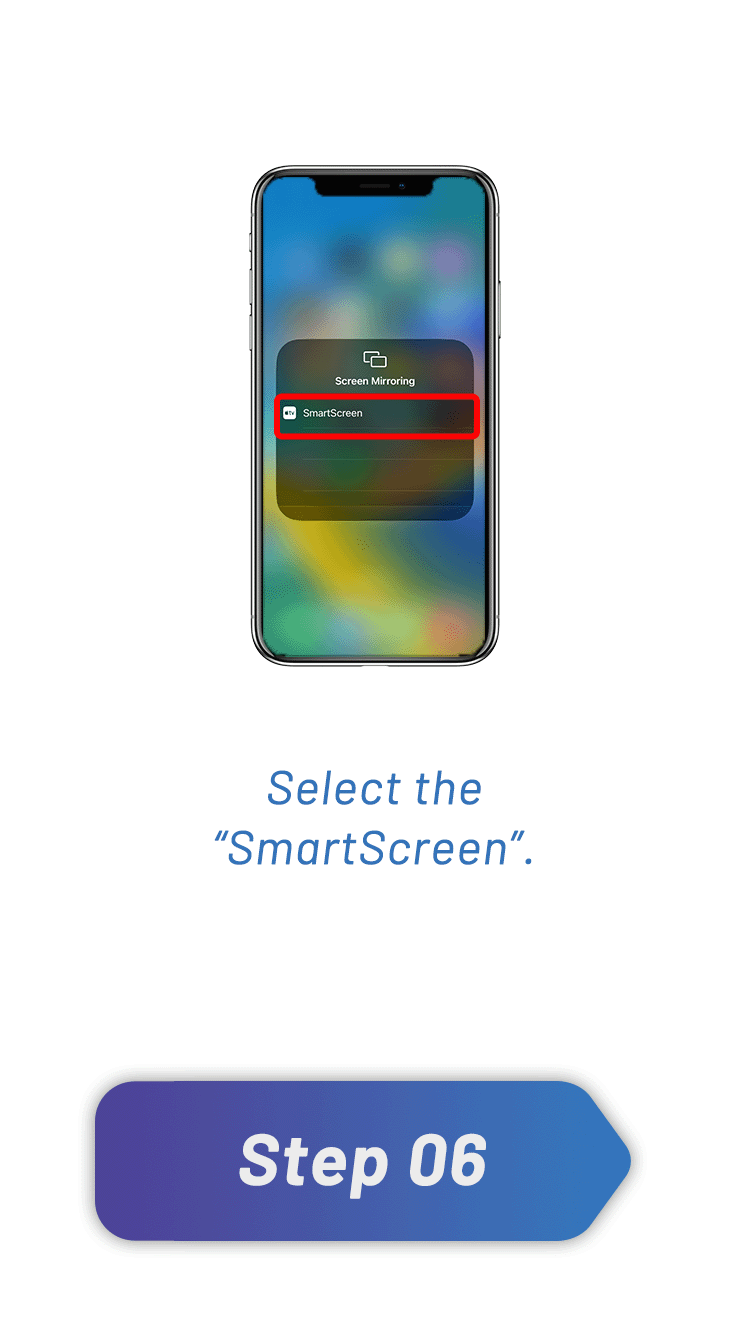

Wireless AirPlay Connection
![](static/images/airplay-00.gif)
![](static/images/airplay-01.gif)
![](static/images/airplay-02.gif)
![](static/images/airplay-03.gif)
![](static/images/airplay-04.gif)
![](static/images/airplay-05.gif)
![](static/images/airplay-06.gif)
![](static/images/airplay-07.gif)
![](static/images/airplay-08.gif)

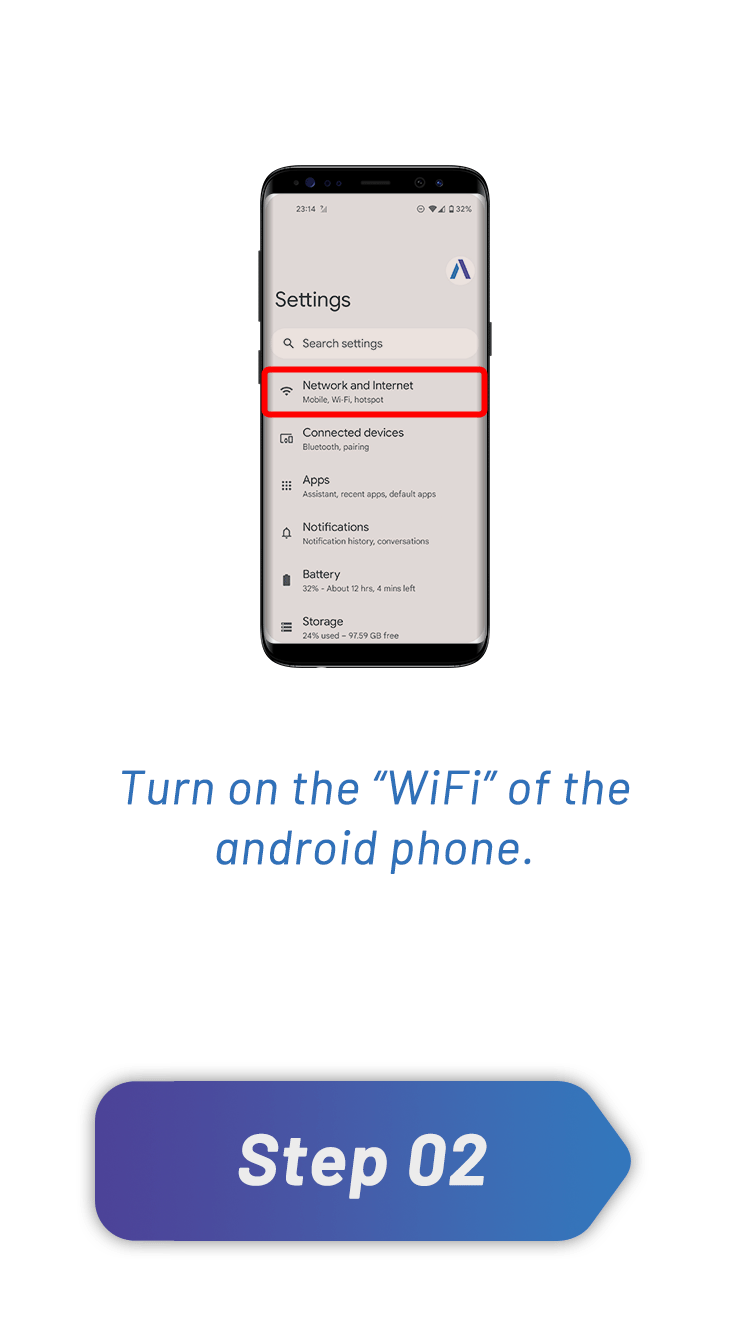

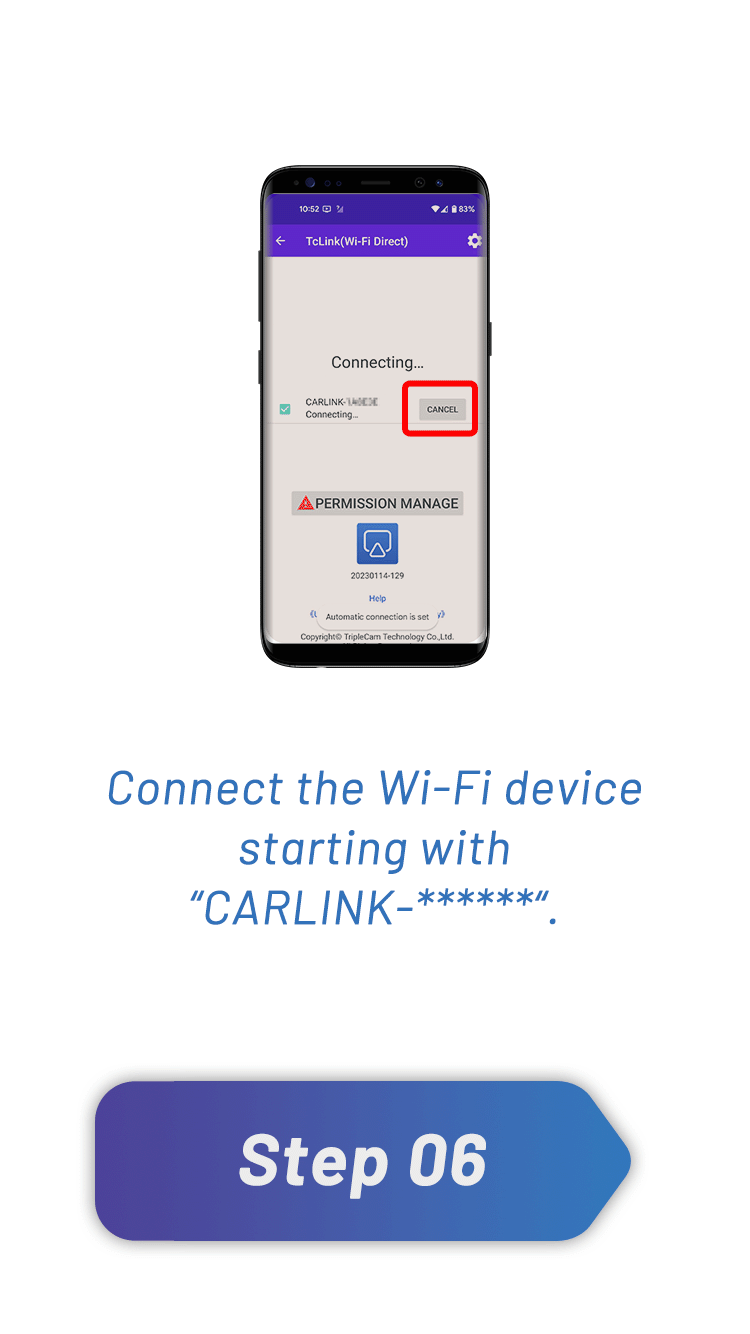

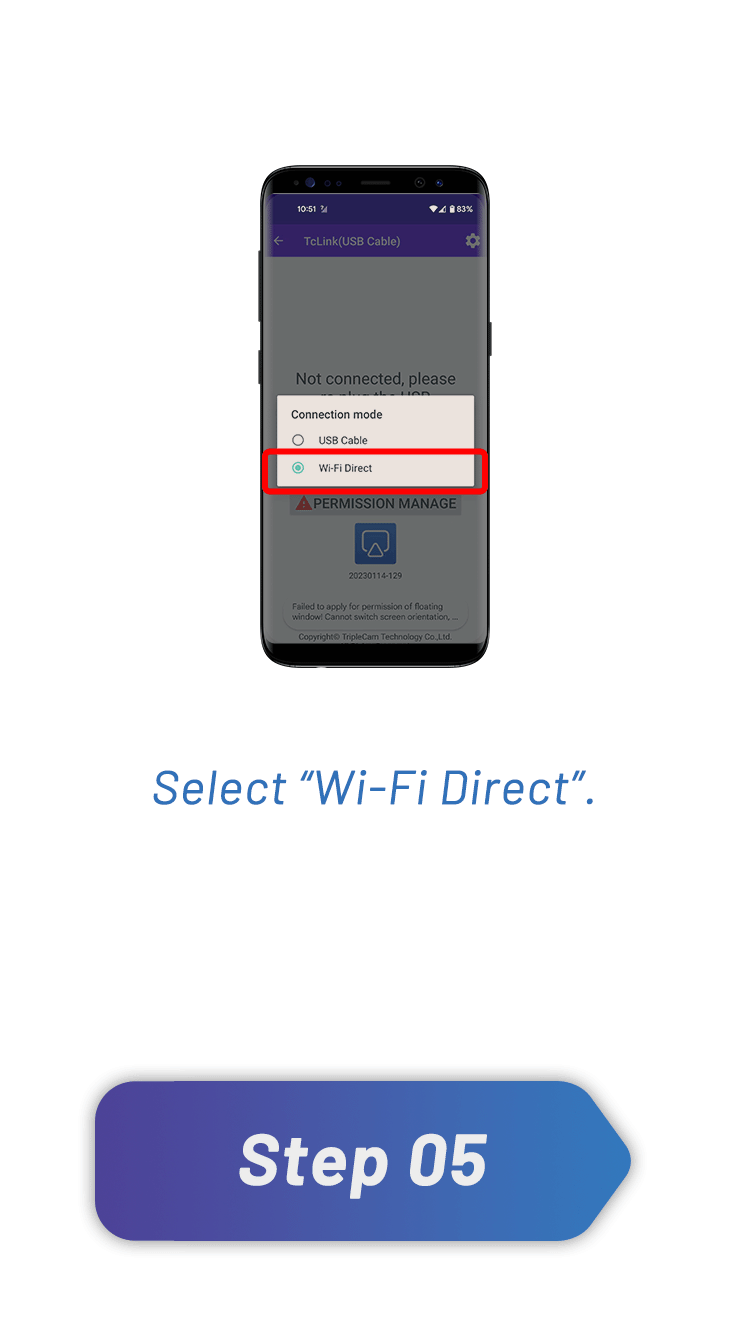

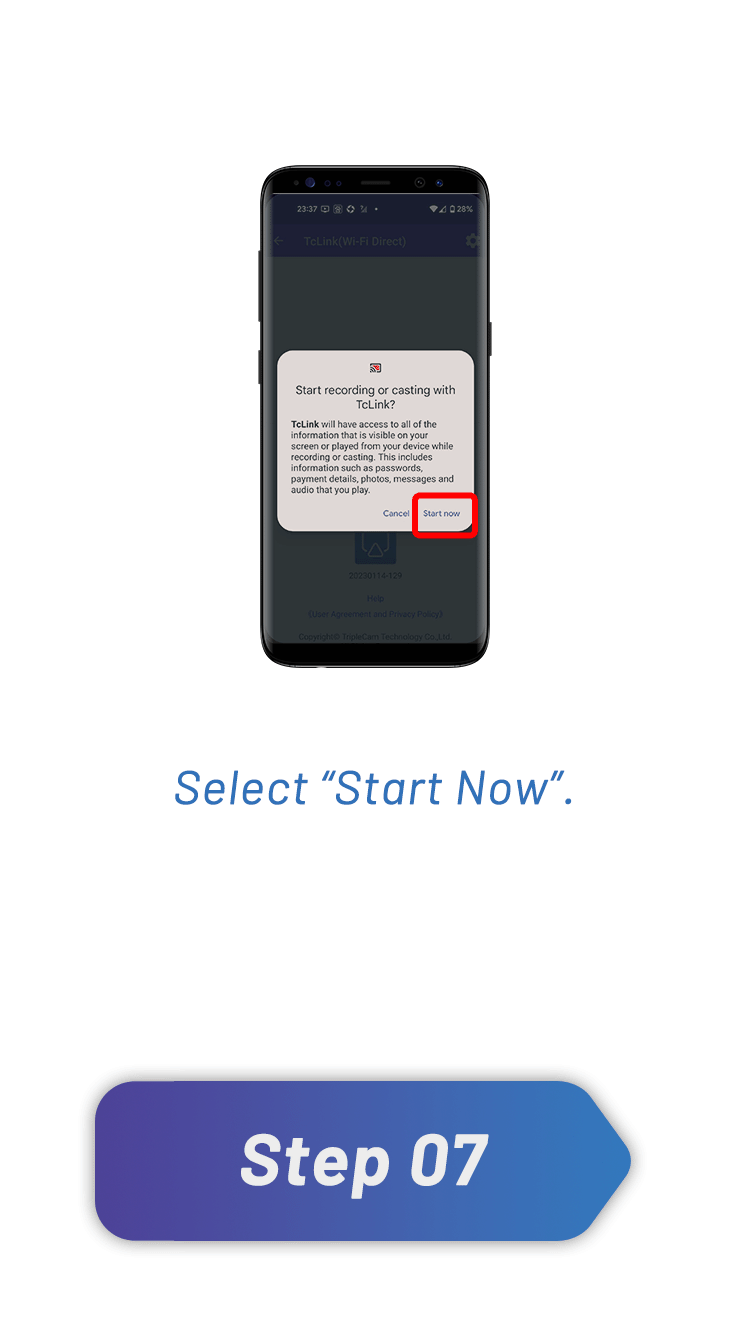

Wireless Android Cast Connection
![](static/images/androidcast-00.gif)
![](static/images/androidcast-01.gif)
![](static/images/androidcast-02.gif)
![](static/images/androidcast-03.gif)
![](static/images/androidcast-04.gif)
![](static/images/androidcast-05.gif)
![](static/images/androidcast-06.gif)
![](static/images/androidcast-07.gif)
![](static/images/androidcast-08.gif)
![](static/images/androidcast-09.gif)
Audio output
Four Ways Of Sounding

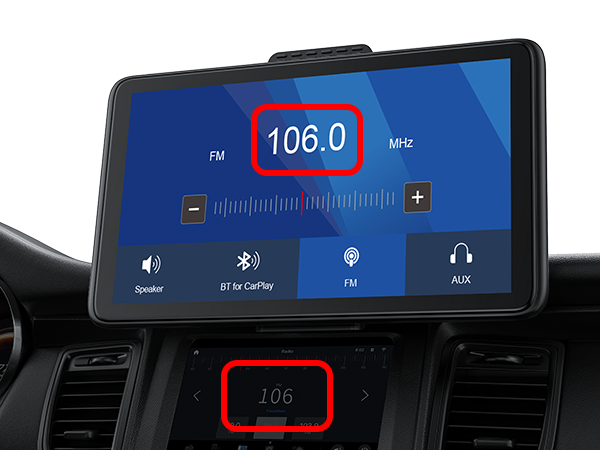

FM Transmitter
Set the same frequency on the device and car radio to receive the FM broadcast of this device.

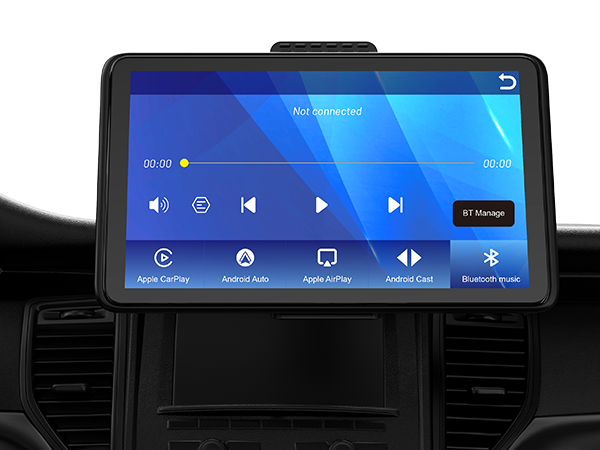

Bluetooth
Easily answer or make hands-free calls, play music, etc., which is safer and more convenient while driving.
![](static/images/showcase.png)

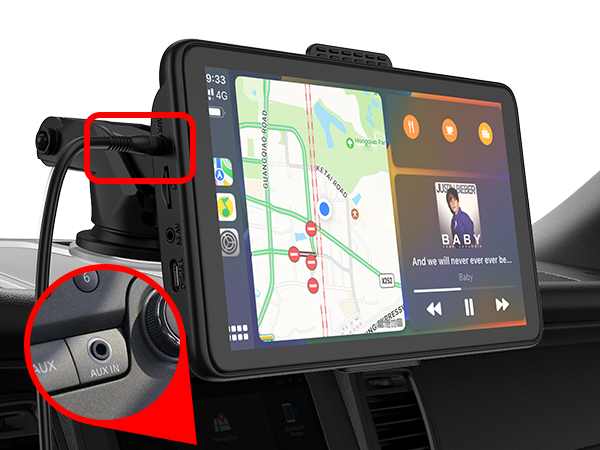

AUX Connection
Connect the device to the car with the AUX cable, and the sound can be played from the original car stereo.
Build-In Speaker
It can play audio directly without connecting other speakers.
